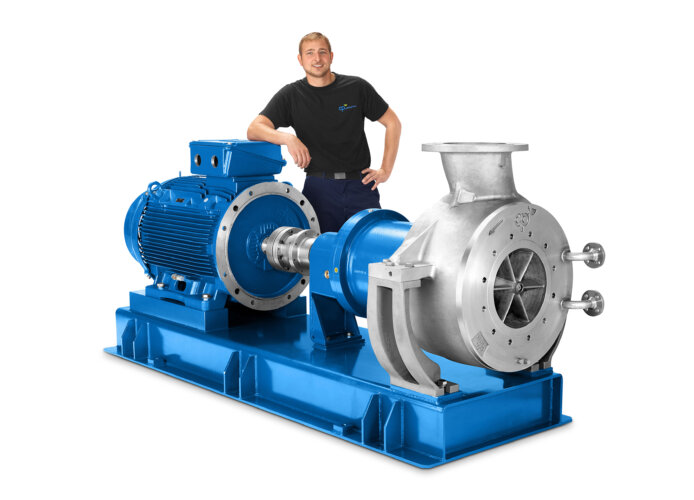

MKP – Stainless Steel Magnetic Drive Chemical Process Pump

Discover here the advantages of the MKP from CP – The highly reliable centrifugal pump for various applications.

Find out more about our MKP pump in our animation.

Overview

Special features

  • Up to 30% solids concentration and 1 mm particle size can be pumped – depending on the nature of the particles*

Construction

  • Unique drive and bearing concept
  • Compact & virtually free of dead space
  • Bearing frame & close-coupled design
  • No shaft feedthrough & leak-free
  • Low product content
  • No plain bearing carrier, no rotating shaft
  • Single-part & central bearing, on all sizes
  • Horizontal & vertical installation possible
  • Low bearing forces due to hydraulically balanced impeller
  • Internal & external bearing lubrication options
  • High material flexibility (casing, impeller as well as plain bearing materials)
  • Eddy-current-free shroud possible (> reduced energy consumption)
  • Inverted drive principle at flow rates up to approx. 200 m³/h
  • Single-stage centrifugal pump

Heatability

  • Single-part heating chamber system
  • Very efficient heatability
  • Only 1 entrance and 1 discharge connection
  • Simple & easy to heat, a single heating jacket reduces installation costs
  • Low temperature difference in the pump & no cold zones thanks to excellent heat distribution
  • Short heating up time due to high thermal transfer efficiency & direct feed of the heating energy into the fluid space

Assembly & repair

  • Modular system made up of few individual parts
  • Assembly friendly

*In general, media with solids content can be transported, but application-specific verification in advance is necessary.

Technical data

Open all

Options

Open all
Capacities Arrow Black

SI: 0.25 to 1300 m³/h
US: 1.1 to 5723.7 gpm

Heads Arrow Black

SI: 3 to 145 m
US: 9.8 to 475.7 ft

Pressure rating Arrow Black

PN 16, PN 25

Temperatures Arrow Black

SI: -100 to +350°C
US: -148 to 662°F

Kinematic viscosities Arrow Black

SI: 0.5 to 350 mm²/s
US: 0.5 to 350 cSt

Solids handling Arrow Black

Up to 30% solids concentration and 1 mm particle size, depending on the pumped fluid*

Casing Materials Arrow Black

Stainless steel 1.4581 (316Nb)
Stainless steel (e.g. 1.4306, Uranus® B6)
Duplex alloys (e.g. 1.4517)
Nickel-base alloys (e.g. Hastelloy® C-4, C-22)
Nickel (e.g. 2.4170)
Titanium (e.g. Grades 2, 7)
Titanium alloys (e.g. Grade 5)
Ceramic coating (Al₂O₃)

Working Principle Arrow Black

Radial flow pump

Priming Method Arrow Black

Flooded suction

Sealing System Arrow Black

Magnetic coupling

Configuration types Arrow Black

CP standard: Close-coupled (SI: -100 to +250°C/US: -148 to +482°F)
EN standard:
Bearing-frame (SI: -100 to +350°C/US: -148 to +482°F)

Directives Arrow Black

EC Machinery Directive
EC Atex Directive
FDA 21 CFR §177

Standards Arrow Black

DIN EN ISO 2858, 5199, 15783

Casing Arrow Black

With heating chamber
With casing wear ring


Connection flanges
To EN 1092-1
Drilled to ANSI/ASME B16.5

Additional connections
Casing drain (with or without flange)
External flush connection for bearing lubrication and/or flushing and cooling the magnet assembly
Manometer connection on the casing
Lantern monitoring connection
Flange connection for heating*
Heating chamber drain (with or without flange)*
Other casing connections to meet customer needs
*Available for jacketed casing only

Gasket materials
PTFE
Pure Graphite
Sigma 511®/NT-CHEM-beige®

Plug seal materials
PTFE
Silver-plated nickel

Bearing Assembly Arrow Black

Materials
SSiC (sintered silicon carbide)
SSiC with graphite
SSiC with diamond-like coating (ADLC)
SSiC mit FuturaSafe®
Nickel-bound tungsten carbide
Nickel-bound tungsten carbide with diamond-like coating (ADLC)

Containment Shell Arrow Black

With Insulation
With Vortex breaker

Materials
Stainless steel
Hastelloy® C
Titanium
Heavy-duty plastic (eliminating eddy current losses)
Zirconia ceramic (eliminating eddy current losses)

Coating
Ceramic (Al₂O₃)

Pump Protection Arrow Black

Containment shell temperature monitoring
Pt100 temperature probe
Engine load sensor
Secondary containment

Mounts Arrow Black

Types
Baseplate
Bracket
Stand
Angle stand
Centreline support
Stilt support plate
Horizontal/vertical
In-line

Materials
Steel
Stainless steel

Stilts
Drip pan
Grounding lugs

Bearing Frame Arrow Black

Lubrication
Oil lubrication
Grease lubrication

Oil lubrication options
Hermetic seal (MagTecta OM™)
Constant level oiler

Coupling

Coupling guard
Steel
Brass
